Part No.: BRP40
Brass Padlock with Steel Shackle
a) Thick copper padlock, Solid brass lock body, copper lock core, with 2 iron keys, A3 hardened stainless steel lock shackle.
b) Lock body size: 20,30,40,50,60,70mm.
c) Corrosion resistance stronger.
d) Other shackle lengths can be customized.
|

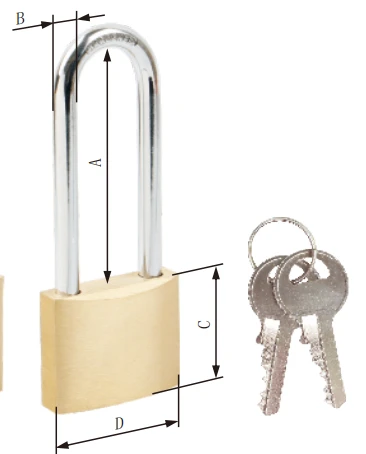

Part No. |
size |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
|
BRP30 |
30MM |
30 |
27 |
12.5 |
5 |
18.5 |
15 |
|
BRP30L |
30 |
27 |
12.5 |
5 |
50 |
15 |
|
|
BRP40 |
40MM |
40 |
32.5 |
14 |
6.2 |
25 |
20.5 |
|
BRP40L |
40 |
32.5 |
14 |
6.2 |
60 |
20.5 |
|
|
BRP50 |
50MM |
50 |
40 |
16 |
9 |
30.5 |
23.5 |
|
BRP60 |
60MM |
60 |
43 |
18 |
10 |
31.5 |
33.5 |
|
BRP70 |
70MM |
70 |
50 |
21 |
11 |
41 |
40 |
Product Profile: Steel Shackle Brass Padlock for LOTO Applications
HiLink's Steel Shackle Brass Padlock is made of solid brass and treated with anodizing. It not only has excellent anti-corrosion and anti-wear performance, but also meets the demands of harsh industrial environments with a sturdy structure and elegant appearance. In high-risk operation scenarios, it provides reliable security locking for you.
Innovative Design & Materials
Solid Brass Lock Body
Made of high-quality solid brass, the lock body undergoes precise craftsmanship and anodic oxidation treatment, featuring extremely strong corrosion resistance and a long service life.
Supports custom sizes (standard model example: 39×41mm), suitable for various installation scenarios and personalized requirements.
Advanced Steel Shackle Mechanism
It is equipped with a sturdy chrome-plated steel shackle with a diameter of 6mm, which is highly impact-resistant and has a long service life.
The standard shackle heights are 25mm, 38mm and 76mm. Customized lengths are supported to meet special locking space requirements.
After the key is turned, the lock beam retracts immediately to prevent the lock from not being locked and enhance operational safety.
Enhanced Safety & Customization
Key Retention & Management
The integrated key retention design ensures that the key cannot be removed when unlocking and prompts that it is not tightly closed when locking, preventing loss.
Equipped with a complete key management system, it reduces the risk of key loss and is suitable for industrial environments with strict security control requirements.
Tailor-Made Aesthetics
We offer a variety of colors and designs of padlocks to easily match the corporate brand image and safety standards.
The lock body and key can be customized. Exclusive logos, code labels and multi-language warning labels can be optionally equipped to meet the needs of different scenarios.
Certifications & Global Standards
Fully certified to meet international industrial safety standards with CE, UL, REACH, and ISO approvals.
Padlocks provide long-lasting and reliable security protection for every scenario that requires secure locking.
Conclusion
HiLink's Steel Shackle Brass Padlock integrates a solid brass lock body, a high-performance chrome-plated steel lock beam and an advanced key retention function, combining excellent durability and flexible adaptability. This padlock complies with global certification standards, supports customization, effectively enhances industrial safety levels, and helps you build a more reliable safety system.
