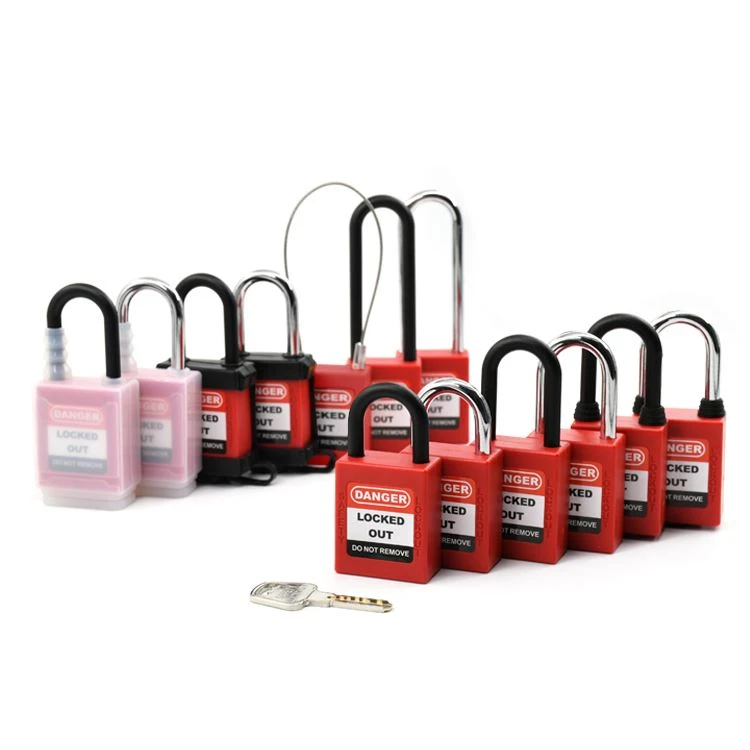

Safety Lockout Tagout Padlock

Product Name:Lockout Tagout Padlock

1:Dust Proof Safety Padlock:

Part Number:P38PDP/P38SDP

Description:

1:Reinforced nylon body ,withstand temperature from -20℃ to + 120℃.The steel shackle is chrome plated; the non-conductive shackle is

made from nylon, withstand temperature from -20℃ to +120℃ ,ensuring the strength and deformation fracture not easily. The cover

is made of non-transparent silicone.

2:Key Retaining Feature: When the shackle is open, the key can't be removed.

3:Shackle Length: 25mm, 38mm, 76mm.

4:Laser printing and logo engraving available if required.

5:All different colors available.

3:Dust Proof Safety Padlock:

Part Number:P38PR2/P38SR2

Description:

1:Reinforced nylon body ,withstand temperature from -20℃ to + 120℃.The steel shackle is chrome plated; the non-conductive shackle is

made from nylon, withstand temperature from -20℃ to +120℃ ,ensuring the strength and deformation fracture not easily. The cover

is made of non-transparent silicone.

2:Key Retaining Feature: When the shackle is open, the key can't be removed.

3:Shackle Length: 25mm, 38mm, 76mm.

4:Laser printing and logo engraving available if required.

5:All different colors available.

4:Safety Padlock:

Part Number:P25P/P25S/P38P/P38S/P76P/P76S

Description:

1:Reinforced nylon body ,withstand temperature from -20℃ to + 120℃.The steel shackle is chrome plated; the non-conductive shackle is

made from nylon, withstand temperature from -20℃ to +120℃ ,ensuring the strength and deformation fracture not easily.

2:Key Retaining Feature: When the shackle is open, the key can't be removed.

3:Shackle Length: 25mm, 38mm, 76mm.

4:Laser printing and logo engraving available if required.

5:All different colors available.

5:Cable Padlock:

Part Number:PC175D1.5/PC175D3.2

Description:

1Reinforced nylon body, withstand temperature from -20℃ to +120℃. The cable shackle is made from stainless steel, ensuring the strength and can't be deformed easily.

2.Key Retaining Feature: When the shackle is open, the key can't be removed.

3.Other cable lengths can be customized.

4.Laser printing and logo engraving available if required.

Details:

Key System:

Key Charting System:

1:Keyed Differ System(KD): Each padlock is keyed differently, supplied with 1 key per lock. 50000pcs individual locks available.

2:Keyed Alike System (KA): Each padlock is keyed the same in one group. 1 key will open all padlocks in each group.

3:Differ& Master Key System (KDMK): Each padlock is keyed differently, supplied with 1 key per lock. A master key will override and open any

of these padlocks.

4:Alike& Master Key System (KAMK): Each padlock is keyed the same in one group. A master key will override and open all groups of Alike keyed.

5:Grand Master Key System (GMK): Each padlock is keyed different in one group. A grand master key will override and open all different

KDMK groups.

Key Charting Registration:

It is important that each employee at a site has a unique padlock key to help prevent duplicate keys from jeopardizing your lockout program.

We promise to use different key and numbering for each order if required. Besides each key can be recorded in our programming system so

that you can reorder the same key whenever necessary.

Q&A

Q1: Why is a LOTO padlock different from a normal padlock?

A LOTO padlock is designed specifically for lockout/tagout procedures. It helps isolate hazardous energy during maintenance and ensures that only the authorized worker can remove the lock, improving workplace safety.

Q2: Why use a non-conductive nylon body?

A nylon body provides excellent electrical insulation, making the padlock safer to use around energized equipment. It is also lightweight, corrosion-resistant, and suitable for demanding industrial environments.

Q3: What environments is it suitable for?

LOTO padlocks are ideal for electrical panels, manufacturing plants, chemical facilities, oil & gas sites, utilities, and any workplace where hazardous energy must be isolated before servicing equipment.

Q4: What is the difference between key retention and non-key retention?

Key retention means the key cannot be removed until the padlock is locked, helping prevent unlocked padlocks from being left behind. Non-key retention allows the key to be removed whether the lock is open or closed, offering greater convenience in some applications.

Q5: How does a LOTO padlock relate to OSHA 1910.147?

OSHA 1910.147 requires hazardous energy to be isolated during maintenance. LOTO padlocks are an essential part of complying with this standard by securing energy isolation devices and preventing accidental equipment startup.

Q6: What is a group lockout application?

In a group lockout, multiple workers attach their own padlocks to a lockout hasp or lock box. The equipment cannot be restarted until every worker has removed their personal padlock, ensuring everyone's safety.
